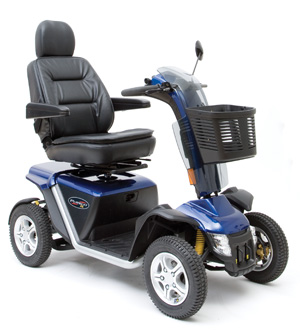

pursuit xl electric scooter by pride mobility raleigh durham medical blue


Home



The Pursuit XL is an exciting blend of power and precision that features full suspension, low-profile tires and a hydraulic-sealed
brake system. Standard luxury touches like a wraparound delta tiller and LED lighting make it the ultimate outdoor scooter.
pursuit xl electric scooter by pride mobility raleigh durham medical blue
















Features & Benefits

  • Infinitely-adjustable tiller angle with conveniently located handle
  • Powerful drivetrain; features 180 amp microprocessor-based controller
  • Deluxe reclining high-back seat with headrest and sliders
  • Full lighting package that includes directional signals and lower headlight
  • Delta tiller with wraparound handles
  • Large 13" low-profile, pneumatic tires for excellent outdoor performance
  • Hydraulic handbrake


Pursuit® XL
Model number: SC714
Weight capacity: 400 lbs.

Maximum speed1: Up to 8.25 mph high speed

Ground clearance2: 5.25”


Turning radius: 82.5”


Overall length2: 56.25”


Overall width2: 27.25”


Front tires: 13” pneumatic


Rear tires: 13” pneumatic


Seat-to-deck: 27”-28.5”


Suspension: Front & Rear


Range per charge1: 28.94 miles with group 27 (100 AH)


21.70 miles with group 24 (70 AH)


Total weight:


without batteries: 205.5 lbs. (main frame)


Standard seating: Type: Reclining, pillow top, high-back seat with headrest
Weight: 48 lbs.

Material: Black Vinyl


Dimensions: width - 19.5” (overall width) depth - 17.5” (effective depth)


Drive system: Rear-wheel drive, sealed transaxle, 24-volt DC motor


Dual braking system: Regenerative and electromechanical


Battery requirements: Two 12-volt, deep cycle


Size: Group 27 (100 AH) Group 24 (70 AH)


Weight4:

Group 24: 55 lbs. each; Group 27: 60.5 lbs.

Battery charger: 8-
