Advanced Front-Wheel Drive.

The Quantum® 1450 front-wheel drive bariatric power base features innovative design that provides exceptional outdoor performance while delivering outstanding tight space maneuverability. The 1450 accepts a complete range of rehab seating and electronics options.

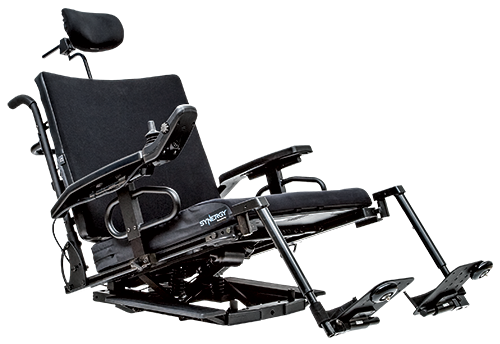

Tru-Balance-hd-power-tilt Quantum 1450 electric wheelchair seat by pride mobility.

40° of Pressure-Relieving Tilt

Quantum Rehab Electric Wheelchairs by Pride Mobility Yellow Raleigh Durham Medical

Front-wheel drive
600 lbs. weight capacity
Maximum speed up to 4.5 mph
High-performance, high-efficiency motor package
Accepts a wide range of seating and positioning systems

Model Quantum 1450

Drive Wheels 14" Solid

Caster Wheels 9" Solid

Anti-Tip Wheels 4" Solid

Maximum Speed* Up to 4.5 mph

Ground Clearance 1.5" (anti-tip wheels)

Turning Radius 26.5" without front riggings

Overall Length 38.25" without front riggings

Base Width 28.5"

Synergy Seat Allowable Sizes Width¹: 20" - 32"
Depth¹: 20" - 28"

Power Tilt Allowable Sizes Width¹: 20" - 32"
Depth¹: 20" - 28"

Synergy Seat Lowest Seat to Floor Height 16.5" - 18.5"^2,3

Power Tilt Lowest Seat to Floor Height 18" - 20"^2,3 with TRU-Balance® HD Power Tilt

Available with Manual Tilt and Recline No

Standard Battery Size Group 24⁴

Battery Weight 52 lbs.⁵

Available Electronics 90A VR2 6-key
100A Q-Logic EX
All Quantum Rehab® units can be ordered with specialty controls

Standard Charger 8A Off-board

Motor Packages 4-Pole

Weight Capacity 600 lbs.⁶

Base Weight 195 lbs

Medicare Code Coverage Group 3:
Heavy Duty (K0850/K0851)
Very Heavy Duty (K0852/K0853)
Single Power Heavy Duty (K0858)
Single Power Very Heavy Duty (K0860)

Notes ¹The addition of Power Recline does not affect the allowable seating sizes.
²All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Widths may increase seat-to-floor height. Contact Customer Service for details. Listed measurements are in the lowest position; does not include elevating system unless specified.
³Power Recline and Power Front Riggings do not increase seat-to-floor height.
⁴Battery capacity may change when adding power positioning systems.
⁵Battery weight may vary based on manufacturer.
⁶Weight capacity is dictated by the selection of seating.

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.
