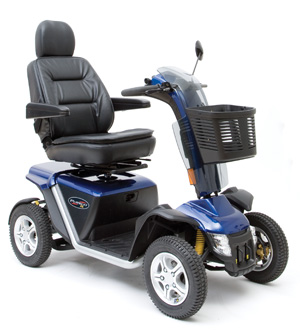

pursuit xl electric scooter by pride mobility raleigh durham medical

The Pursuit XL is an exciting blend of power and precision that features full suspension, low-profile tires and a hydraulic-sealed
brake system. Standard luxury touches like a wraparound delta tiller and LED lighting make it the ultimate outdoor scooter.

Features & Benefits

Infinitely-adjustable tiller angle with conveniently located handle
Powerful drivetrain; features 180 amp microprocessor-based controller
Deluxe reclining high-back seat with headrest and sliders
Full lighting package that includes directional signals and lower headlight
Delta tiller with wraparound handles
Large 13" low-profile, pneumatic tires for excellent outdoor performance
Hydraulic handbrake

Pursuit® XL
Model number: SC714
Weight capacity: 400 lbs.

Maximum speed1: Up to 8.25 mph high speed

Ground clearance2: 5.25”

Turning radius: 82.5”

Overall length2: 56.25”

Overall width2: 27.25”

Front tires: 13” pneumatic

Rear tires: 13” pneumatic

Seat-to-deck: 27”-28.5”

Suspension: Front & Rear

Range per charge1: 28.94 miles with group 27 (100 AH)

21.70 miles with group 24 (70 AH)

Total weight:

without batteries: 205.5 lbs. (main frame)

Standard seating: Type: Reclining, pillow top, high-back seat with headrest Weight: 48 lbs.

Material: Black Vinyl

Dimensions: width - 19.5” (overall width) depth - 17.5” (effective depth)

Drive system: Rear-wheel drive, sealed transaxle, 24-volt DC motor

Dual braking system: Regenerative and electromechanical

Battery requirements: Two 12-volt, deep cycle

Size: Group 27 (100 AH) Group 24 (70 AH)

Weight4:

Group 24: 55 lbs. each; Group 27: 60.5 lbs.
Battery charger: 8-
