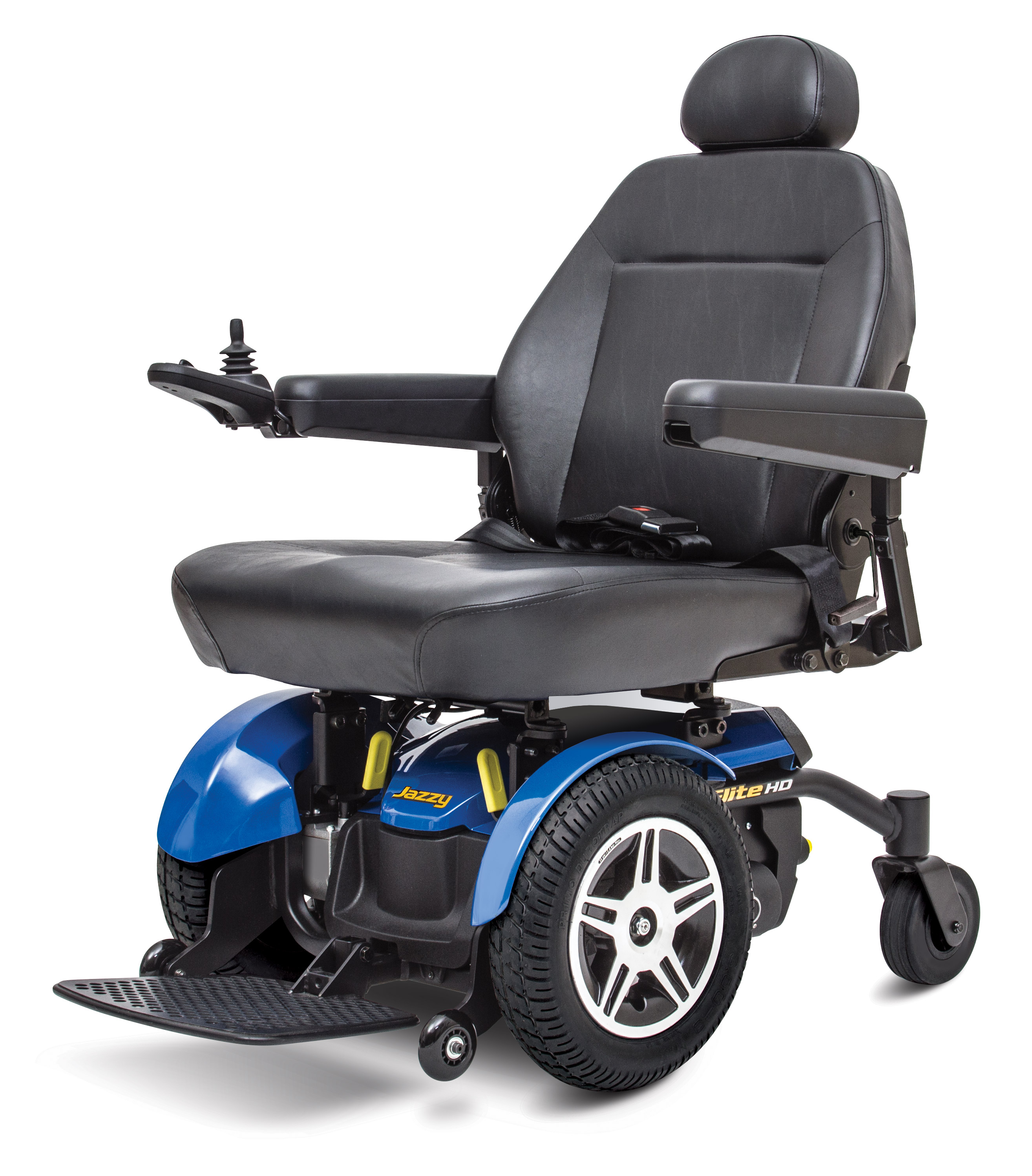

2017 Specifications Jazzy Elite Heavy Duty Electric Wheelchair by Pride
Mobility Raleigh Durham Medical
Jazzy Elite HD Specification
| Model |
Jazzy Elite HD
|
| Weight Capacity | 450 lbs.5 |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" solid |
| Rear Wheels | 6" Solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 24"W x 24"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy® Seating | 24"W x 24"D |
| Synergy® Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 60A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,7 | Up to 9.8 miles |
| Battery Weight6 | 37 lbs. each |
| Weight of Heaviest Piece4 | 98.5 lbs. |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20" x 18"-20" |
| Medicare Code Coverage | Group 2: Heavy Duty (K0824/K0825) |
| Warranty | 5-year
limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
