Allied Healthcare EPV100 Portable Ventilator with Assist Control

Description Features Specifications Accessories  Literature






The MCV100 is a battery powered weather resistant ventilator specifically designed to meet the unique demands of mass casualty incidents. This ventilator delivers ambient air or oxygen at a tidal volume range of 200 to 1200 ml, and ventilation cycles of between 8 to 20 breaths per minute. It also features an assist control function for spontaneous breathing, a full array of audible and visual safety alarms, and provides an optional capability of air mixing. The MCV100 can be powered by its internal rechargeable battery or by standard 110 volt electricity.

The "Emergency Preparedness Ventilator" 100 is a small, cost-effective, and reliable unit for mass casualty emergency situations.

The EPV100 Portable Ventilator shares most of the same features as the EPV200, without the Assist-Control. It's lightweight, durable, and resistant to most weather conditions (including rain).

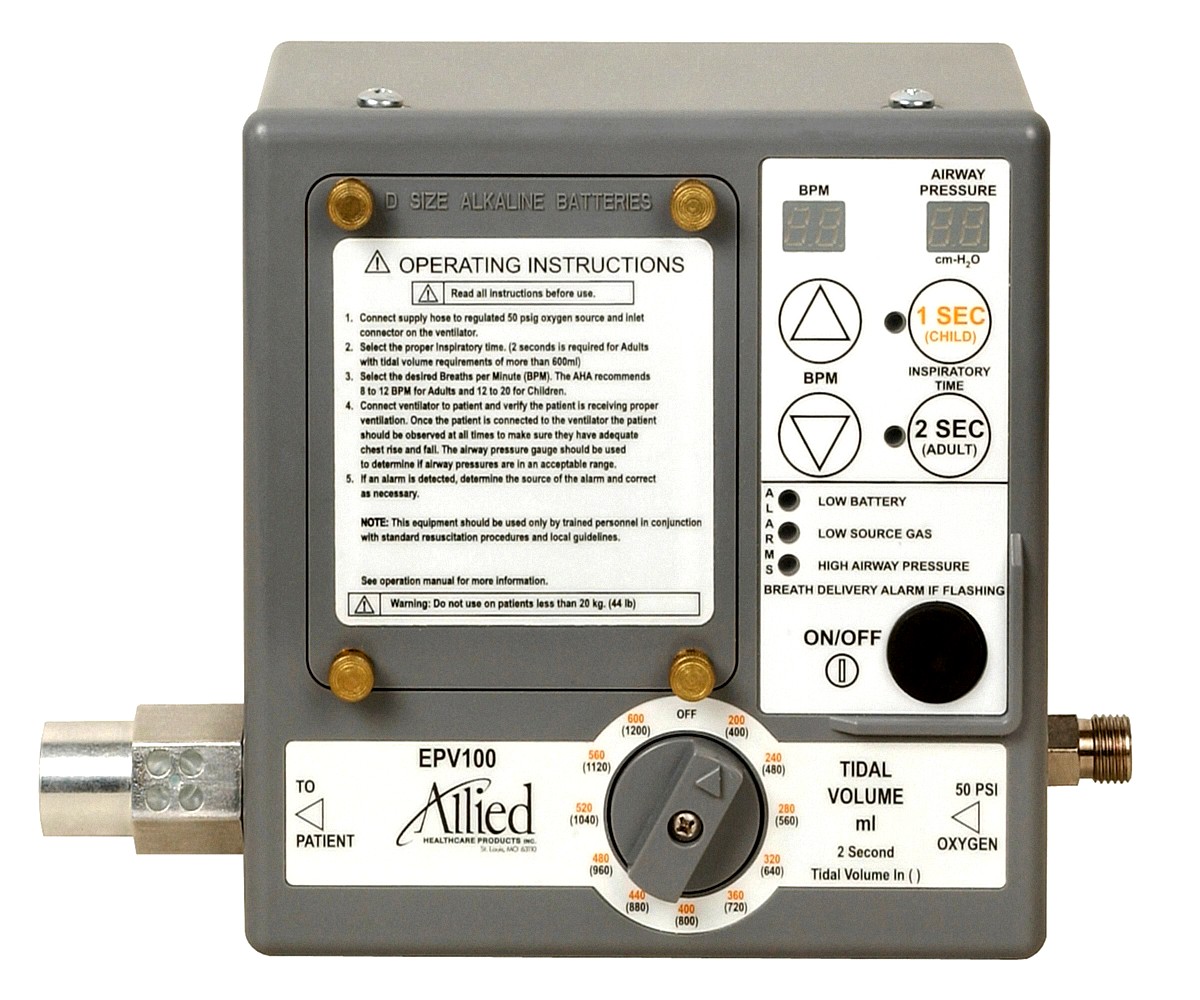

This unit can be powered for 48 hours via two D-cell batteries, or can be pneumatically controlled via an oxygen source. On the front is a user-friendly display, on which emergency responders can clearly see the inspiratory time, tidal volume, and BPM controls.
In addition, responders can keep track of a patient's condition with the various audio and visual alarms on the unit.

This unit is lightweight and long-lasting, making it best for emergency situations requiring critical support or stockpiling for future use.

• Designed to meet surge capacity.
• Light and easy to operate.
• Powered by compressed gas.
• The most cost-effective option for medical surge stockpiling or routine transport.
• Simple control interface enables treatment by a broad range of caregivers during medical surge or routine transport.
• Lightweight durable construction for transport ventilation and stockpiling.
• Very low maintenance and accessory costs ensure a low cost of ownership.

• Dimensions: 3.5" x 7" x 9.3" (8.9 cm x 17.8 cm x 23.6 cm).
• Weight: 3.1 lb (1.4 kg).
• Power Source: Pneumatic with electronic controls and alarms.
• Power Input: Pneumatic. 40 - 87 psi O₂ and 2 D cell batteries.
• Internal Battery Type: 2 D Cell Batteries.
• Operating Time: Based on average adult settings of 20 BPM, 640 ml tidal volume, 2 second inspiratory time.
  • Oxygen: Dependent on source capacity. Approx. 65 minutes on D cylinder.
• Battery Run Time: 48 hours at room temperature with settings of 10 BPM and 2-second inspiratory time; 2 D-cell batteries required.

Setting Parameters:

• Ventilation Mode: CMV (Controlled Mandatory Volume).
• Assist-Control: Triggers at less than -2 cm H₂O.
• Flow Rate: 12 - 36 LPM.
• Inspiratory Time: 1 second and 2 seconds.
• Tidal Volume: 200 to 1200 ml.
• Breathing Rate: 8 to 30 (1-second inspiratory time).
• PEEP: External. 0 - 20 cm H₂O (with PEEP adapter).
• Manometer Readout: 5 to 99 cm H₂O.
• Airway Pressure Limit: Fixed. 60 cm H₂O.

Power Characteristics:

• Power Source: Pneumatic with electronic controls and alarms.
• Power Input: Pneumatic. 40 - 87 ps O₂ and 2 D-cell batteries.
• Internal Battery Type: 2 D-cell batteries.
• Operating Time: Based on average adult settings of 10 BPM, 640 ml tidal volume, 2 second inspiratory time.
  • Oxygen: Dependent on source capacity. Approx. 65 minutes on D cylinder.
• Battery Life: 48 hours of continuous use.

Alarms:

• High Airway Pressure: Fixed. 45 cm H₂O.
• Low Airway Pressure / Circuit Disconnect: Fixed. 9 cm H₂O.
• Low Source Gas: Fixed. Activates at approx. 40 psi (275 kPa).
• Low Battery: Activates when approx. 2 hours of run time remain.
• Alarm Volume: Approx. 60 dB at 1 meter.
• Alarm Silence: Yes. 110 seconds silence.
